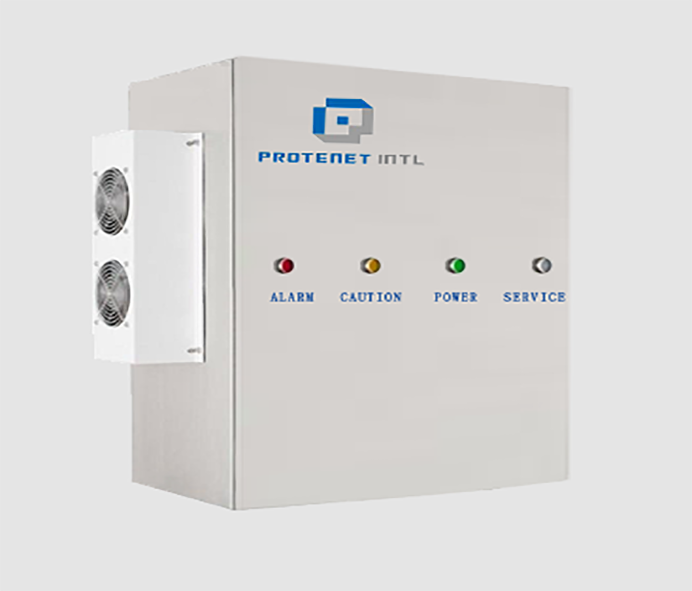

ProTenetIntl™ DGA Monitor PTI-P6
PTI-P6 transformer oil gas online monitoring system realizes the fine analysis of the gas composition of transformer oil samples，It is characterized by accurate measurement,fast analysis, real-time monitoring, etc.
The monitoring system is mainly used to measure and analyze the trace fault gas contained in the insulating oil of oil immersed power equipment,It can capture potential fault information of transformer equipment in real time to ensure safe and reliable operation of transformer equipment.
Features
Product features
Precision analysis equipment integrating control, measurement and analysis technology.
It has the functions of oil and gas separation, mixed gas separation, data analysis and processing, and remote transmission.
It has the characteristics of fast sampling and analysis, and the system can complete a complete sampling and analysis within 2 hours at most.
It can realize N: 1 remote measurement and control communication with intelligent controller, and the saved data can be shared with other SCADA systems in the power system.
It can measure seven characteristic gases reflecting transformer fault information - hydrogen (H2), carbon monoxide (CO), carbon dioxide (CO2), methane (CH4), ethane (C2H6), ethylene (C2H4), acetylene (C2H2).
It can be installed directly when the transformer is running without power failure.
Technical parameter
Transformer type: mineral oil
Inlet oil pressure: max. 100 ℃（+212℉）
Ambient temperature range:-40—55℃（-40—131℉）
Ambient humidity range:0—95%RH
Storage temperature range:-40—60℃（-40—140℉）
Operating voltage:220VAV，50Hz，±10%
Maximum power:1000W
Typical power consumption:200W，（25℃（+77℉））
Weight:100KG
Main materials:stainless AISI316
Duration of measurement cycle:1—1.5hour
Response time:One measurement cycle
Expected service life:≥12years
