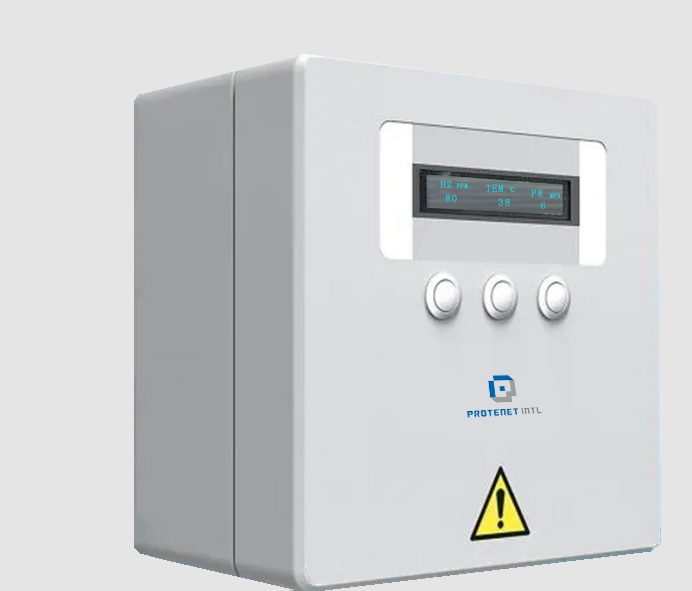

ProTenetIntl™ Supporting for isolated phase enclosed bus Monitor PTI-T1
PTI-T1 isolated phase enclosed bus is equipped with an online monitoring device to continuously monitor the generator outgoing line, which can provide the status content of H2 generated by the fault or aging of the generator outgoing line and enclosed bus at the connection of A, B, C phases and neutral points in real time, continuously monitor the insulation status of the generator's internal, end and enclosed bus insulators online, evaluate the insulation life and output a maintenance diagnosis demand report to the user, At the same time, the alarm signal is sent to the monitoring background, and an online temperature measuring device (WTM) is set to monitor the temperature of the conductor, connector and shell, so as to provide reliable first-hand information for maintenance.
Features
Technical parameter
Minimum detection concentration: 10 μ L/L。
Detection concentration range: 10-2000 μ L/L
Detection accuracy: ± 10% reading or ± 20 μ L/L takes the maximum value
Test cycle: ≤ 10min
Temperature measurement range: - 55 ℃～ 125 ℃
Temperature measurement accuracy: ± 0.5 ℃ (- 20 ～+80 ℃)
Temperature measurement resolution: 0.0625 ℃
Humidity measurement accuracy: 25 ℃± 5% RH
Humidity measurement resolution: 1% RH
Man machine interface: nixie tube display, mobile APP, upper computer software
Data transmission: RS485, Ethernet, Modbus, 61850, wireless hotspot.
Product features
The highly integrated system, miniaturized design and scientific layout make STOM-400/F free from the restriction of the space near the valve.
The highly integrated and compact shape greatly reduces the cost of the product, enabling customers to achieve the status monitoring of power equipment and high reliability of the power grid with low investment.
Patented technology - polymer solid electrolyte for proton transfer and mature and reliable fuel cell gas sensor for fault gas monitoring.
High precision A/D signal sampling and conversion, and microprocessor intelligent control of data acquisition, storage and output.
It is completely designed according to outdoor application, and is resistant to various ambient temperatures, moisture, vibration, electromagnetic interference, etc.
Level II gas concentration (high and ultra-high) alarm and temperature alarm.
OLED reading display.
Industrial standard 4-20mA analog quantity.
Standard RS-232/485 serial port digital communication.
System operation parameter setting and remote control.
Centralized monitoring by multiple monitors.
There are two methods of monitoring terminal data display: graphic and table.
